Engineering Excellence in Bulk Material Handling Applications

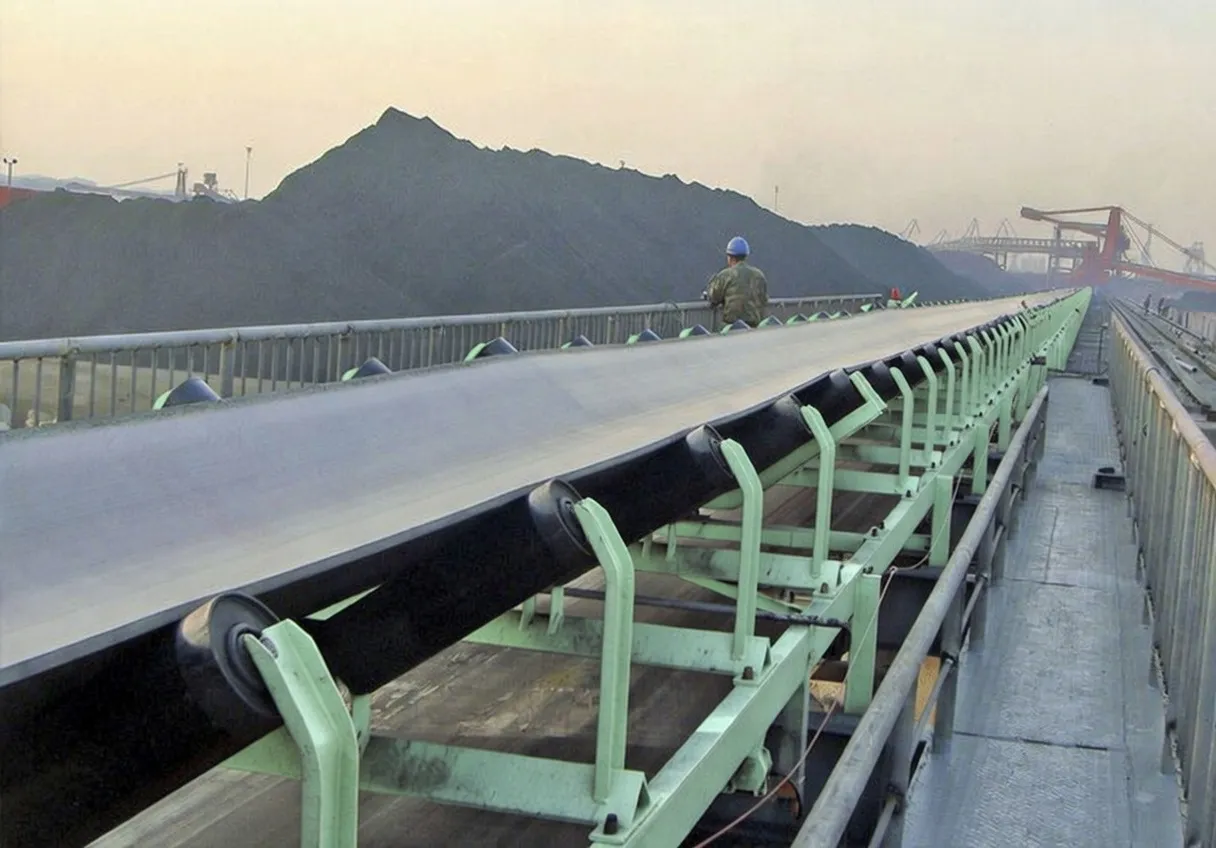

Operating within the relentless environments of modern extraction and processing plants requires power transmission solutions that offer uncompromising reliability and sustained high performance. A helical-bevel gearbox represents the pinnacle of right-angle drive technology, specifically engineered to withstand the extreme shock loads, high torque demands, and abrasive particulate contamination typical of bulk handling operations. In the context of heavy industrial sites across the United Kingdom, from the rugged limestone quarries of the Peak District to the extensive cement manufacturing complexes in the Midlands, the efficiency of a belt conveyor system is intrinsically linked to the durability of its drive unit. This specific configuration of gearing combines the smooth, continuous power transfer of helical gears with the robust, right-angle power redirection of spiral bevel gears, resulting in an exceptionally efficient mechanical transmission mechanism. The inherent design maximizes tooth contact area, ensuring smooth load distribution even during aggressive start-stop cycles when conveyor belts are fully loaded with dense aggregate or clinker. Plant operators constantly face the dual pressures of maximizing throughput while minimizing unplanned downtime, making the selection of a highly engineered helical-bevel gearbox a critical strategic decision that directly impacts overall operational profitability and production quotas.

The intricate architecture of these drive units involves precision-ground gear profiles that significantly reduce friction and heat generation, which is a common failure point in lesser transmission systems operating under heavy continuous loads. By maintaining mechanical efficiencies often exceeding ninety-five percent, a high-quality helical-bevel gearbox ensures that the maximum possible motor power is directly translated into conveyor belt movement, reducing electrical consumption and lowering the carbon footprint of the facility. The rugged cast iron or spheroidal graphite iron housings are specifically sculpted to provide structural rigidity, resisting the immense twisting forces generated by heavy loads while simultaneously offering superior thermal dissipation capabilities. When paired with advanced labyrinth sealing systems and high-grade synthetic lubrication, these units create an impenetrable barrier against the highly abrasive dust and moisture prevalent in processing environments, effectively safeguarding the internal precision components and extending the mean time between failures dramatically. This operational resilience is what makes this technology the undisputed standard for critical conveying infrastructure in the most demanding material handling sectors globally.

Fundamental Operating Principles and Metallurgical Specifications

Understanding the superior performance of a helical-bevel gearbox requires a deep dive into its kinematic principles and the advanced materials utilized in its construction. The input stage typically involves a robust spiral bevel gear set, which accomplishes the necessary ninety-degree change in power flow direction while accommodating high input speeds from the electric motor. The subsequent reduction stages utilize helical gears, where the angled tooth profiles engage gradually, leading to significantly quieter operation and the ability to transmit massive torque loads without suffering from premature tooth fatigue or surface spalling. This gradual engagement allows multiple teeth to share the load simultaneously, a crucial factor when a fully loaded belt conveyor experiences sudden material surges or emergency stops that would otherwise shear standard straight-cut gear teeth. The housings undergo finite element analysis during the design phase to optimize the placement of internal structural ribs, ensuring absolute bearing alignment under maximum load conditions, which prevents shaft deflection and the subsequent uneven gear wear that leads to catastrophic transmission failure in heavy industrial settings.

Material selection is paramount to achieving the necessary operational lifespan in highly abrasive and demanding sectors. The gears and pinions are forged from high-purity, low-carbon alloy steels, which undergo a rigorous carburizing and quenching process to produce a file-hard, wear-resistant outer casing while retaining a tough, ductile core capable of absorbing extreme shock loads. The surface geometry of each gear tooth is precision-ground after heat treatment to eliminate minute distortion, achieving AGMA quality standards that guarantee optimal meshing and minimal transmission error. Heavy-duty tapered roller bearings are strategically deployed to manage the substantial axial and radial forces generated by the helical and bevel gear actions, as well as the external overhung loads imposed by the conveyor drive pulleys. Specialized dual-lip Viton seals riding on hardened and ground shaft sleeves prevent the ingress of abrasive dust and the escape of vital lubricants, ensuring the internal mechanisms remain isolated from the harsh external environment of a processing facility.

The Crucial Synergy Between Gearboxes and Industrial Drive Shafts

A robust power transmission system relies entirely on the seamless integration of its individual components, which makes the relationship between a high-performance helical-bevel gearbox and an associated industrial drive shaft incredibly critical. The gearbox provides the necessary torque multiplication and speed reduction, but this massive rotational force must be accurately and safely transmitted to the head pulley of the belt conveyor. We offer highly engineered, matching industrial drive shafts designed specifically to handle the immense torsional stress generated by our gear units. In sprawling material processing sites, structural settling or minor installation inaccuracies often lead to slight misalignments between the gearbox output and the conveyor pulley input. A properly specified industrial drive shaft, particularly those utilizing universal joints or flexible elastomeric couplings, compensates for these unavoidable angular and parallel misalignments, preventing severe radial loads from destroying the output bearings of the gearbox or the bearings of the conveyor pulley.

The dynamic operating conditions of heavy bulk conveying introduce significant torsional vibrations and shock loads, especially during the initialization of fully loaded belts or during rapid emergency braking sequences. An industrial drive shaft acts as a vital mechanical dampener within the drivetrain, absorbing these destructive energy spikes before they can propagate backward into the precision gearing of the helical-bevel gearbox or forward into the conveyor structure. Our comprehensive approach ensures that both the reduction unit and the transmission shaft are engineered with complementary safety factors and torque ratings, eliminating weak links within the system. This holistic pairing strategy significantly extends the service life of the entire drive assembly, reduces maintenance intervals, and protects the massive capital investment represented by the processing facility’s critical material handling infrastructure. Plant engineers appreciate the simplified procurement and guaranteed compatibility that comes from sourcing both the core reduction unit and the vital connecting shaft from a single, specialized manufacturing partner.

Exceptional Advantages for Heavy Industrial Environments

Deploying a dedicated helical-bevel gearbox for critical bulk conveying tasks introduces a multitude of structural and operational advantages that directly influence facility efficiency and profitability. One of the most prominent benefits is the exceptional torque density achieved through the right-angle configuration, allowing for a highly compact installation footprint parallel to the conveyor structure. This spatial efficiency frees up valuable gangway space for maintenance personnel and infrastructure, solving significant layout challenges in crowded processing plants where multiple conveyor lines converge. The inherent mechanical efficiency of the bevel and helical gear combination significantly reduces power loss as heat, dropping operating temperatures substantially compared to traditional worm gear alternatives. Cooler operation directly correlates to extended oil life and a drastic reduction in the thermal degradation of vital elastomeric seals, meaning maintenance teams spend far less time dealing with nuisance leaks or performing premature oil analysis and changes.

The modular design philosophy applied to our gear systems provides unparalleled versatility and adaptability to site-specific requirements. Plant engineers can select from a wide array of standardized output configurations, including solid shafts with keyways, hollow shafts with shrink discs for simplified mounting and dismounting, or highly customized flanged connections that mate directly with existing plant equipment. Integrated backstops can be seamlessly incorporated into the housing to prevent dangerous reverse rotation of inclined belt conveyors during power failures, safeguarding both personnel and machinery from uncontrolled material avalanches. The robust external housing geometry is completely optimized to shed water and avoid the accumulation of abrasive dust, which simplifies regular plant washdown procedures and minimizes the risk of thermal insulation caused by thick layers of settled material. These engineered advantages collectively transform the gear unit from a simple mechanical component into a highly strategic asset that guarantees the uninterrupted flow of materials through the processing facility.

Proven Success in the United Kingdom Processing Sector

A major aggregate and cement manufacturing conglomerate operating a large-scale facility in Derbyshire encountered severe reliability issues with their primary crusher discharge conveyor. The existing parallel shaft gearboxes were suffering from chronic overheating and catastrophic bearing failures due to the massive impact loads generated when large boulders were deposited onto the moving belt. This specific conveyor is the absolute bottleneck of the entire operation, moving over three thousand tons of raw limestone per hour, meaning any drive failure instantly halted downstream kilns and crushing circuits, costing thousands of pounds per hour in lost production. We conducted an exhaustive on-site dynamic load analysis and engineered a direct drop-in replacement utilizing an ultra-heavy-duty helical-bevel gearbox coupled perfectly with a custom-engineered industrial drive shaft featuring advanced torsional dampening capabilities. The new right-angle configuration completely eliminated the previous spatial constraints, while the superior gear geometry effortlessly handled the violent shock loading that destroyed the previous units.

Following the successful commissioning of the upgraded drive package, the facility recorded an unprecedented eighteen months of continuous, zero-fault operation on the primary discharge line. The integration of advanced taconite sealing arrangements completely eradicated the ingress of highly abrasive limestone dust into the lubrication system, a problem that previously necessitated monthly oil purges. The overall energy consumption of the conveyor drive was demonstrably reduced by seven percent due to the superior mechanical efficiency of the new gear train, aligning perfectly with the corporation’s aggressive sustainability and carbon reduction targets. The success of this specific installation prompted a comprehensive facility-wide reliability audit, leading to the systematic replacement of numerous legacy drives with our standardized right-angle solutions, significantly rationalizing their critical spare parts inventory and dramatically boosting total plant availability.

Bespoke Manufacturing and Rapid Customization Capabilities

Standard catalog offerings often fall short when addressing the unique structural geometries or specific operational challenges found in older, highly modified processing facilities. At Ever Power, our state-of-the-art manufacturing campus is intentionally equipped to provide extensive customization services, turning complex engineering requirements into robust physical reality. We utilize multi-axis CNC machining centers capable of modifying standard cast housings to accept bespoke mounting flanges, customized sensor ports for sophisticated condition monitoring systems, or specialized cooling loops designed for extremely high-ambient temperature installations. Our in-house metallurgical laboratory and advanced heat-treatment facilities allow us to precisely tailor the core hardness and case depth of individual gears, creating highly specialized components engineered specifically to resist the exact wear patterns generated by your specific bulk material characteristics and shock load profiles.

We recognize that extended downtime is completely unacceptable in the heavy materials sector, which is why our agile production methodology is engineered to deliver customized drive solutions with industry-leading speed. From the precise specification of complex hollow shaft dimensions and specialized shrink disc configurations to the application of aggressive anti-corrosion marine-grade epoxy coatings for extreme environments, every bespoke helical-bevel gearbox undergoes rigorous dynamic testing prior to dispatch. Our engineering team works collaboratively with site maintenance personnel to ensure absolute dimensional compatibility, guaranteeing a frictionless drop-in installation process that dramatically reduces planned outage durations. When combined with our ability to rapidly manufacture complementary heavy-duty industrial drive shafts, we provide a comprehensive, end-to-end power transmission service designed to elevate your facility’s operational reliability permanently.
